Accessing Reverse PDF Forms

To access your Reverse PDF Forms:

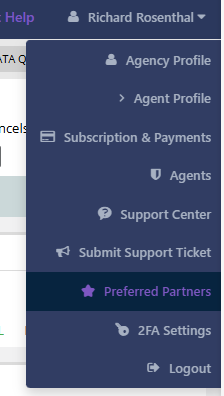

1. Click your name in the upper-right corner of Momentum AMS.
2. Select Agency Profile.

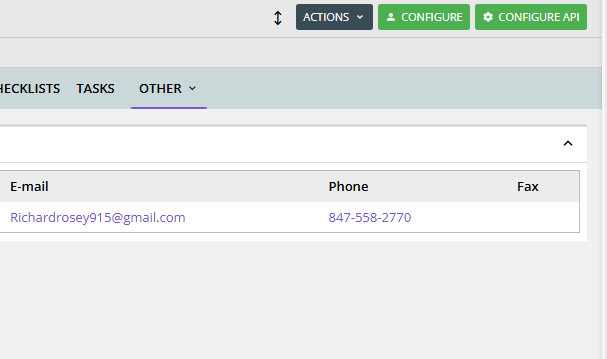

3. Select the Other tab.

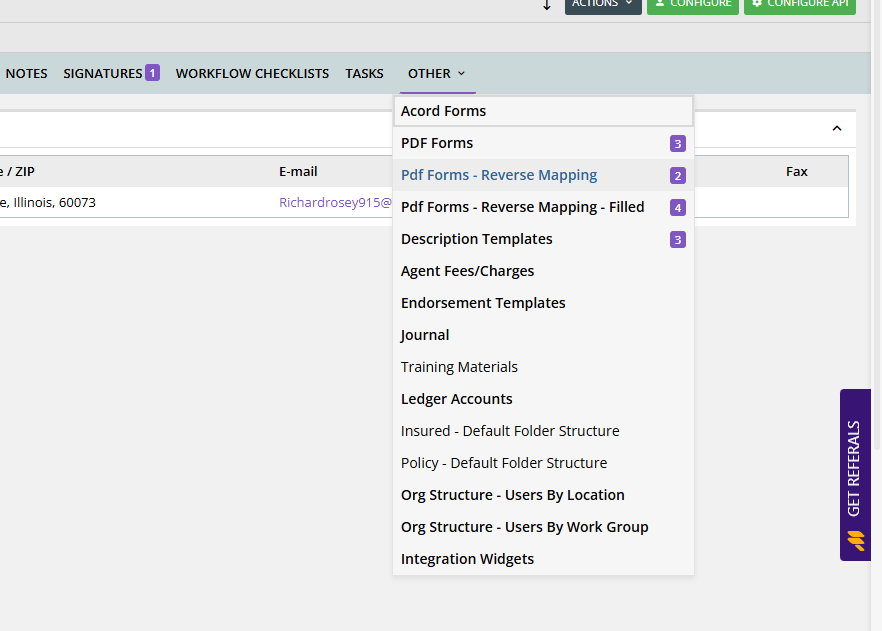

4. Click PDF Forms - Reverse Mapping.

Locate the form you wish to map.

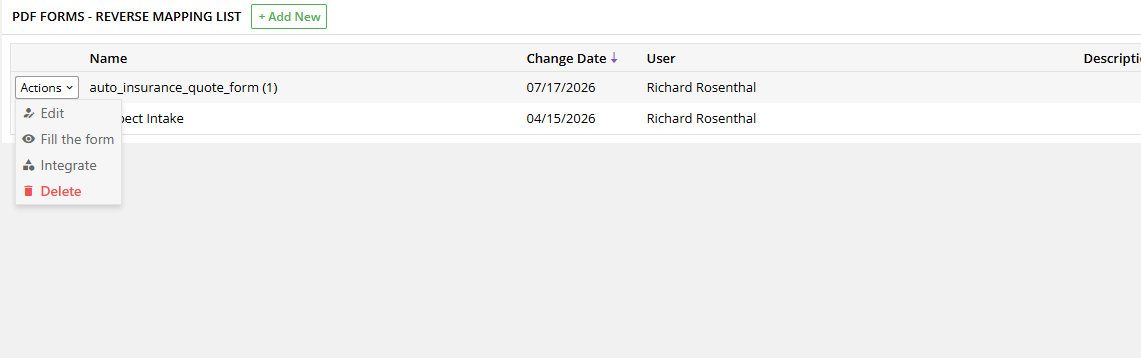

Editing a Reverse PDF Form

1. Locate the desired form.
2. Click Actions.
3. Select Edit.

If you have not yet uploaded your PDF, upload it first before attempting to map any fields.

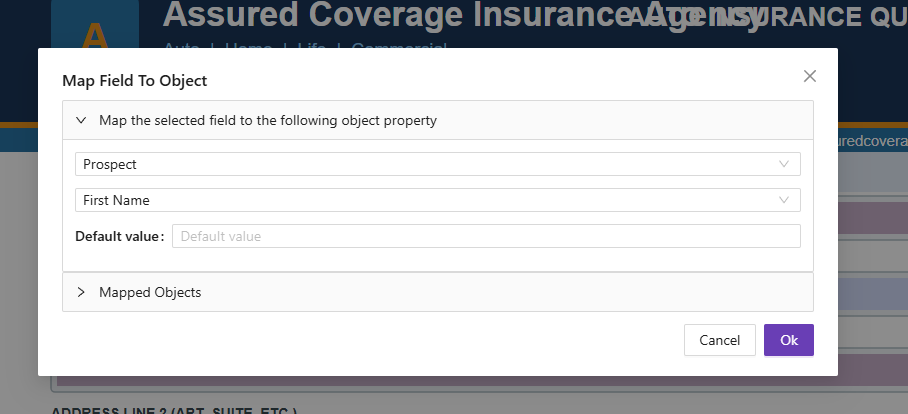

Mapping Standard Fields

To map a field:

1. Click the field on the PDF.
2. Select the data source.

Available data sources include:

• Prospect
• Insured
• Policy Quote
• Custom Fields

After selecting the data source:

1. Choose the appropriate field.
2. Click OK.

When successfully mapped, the field changes from light blue to purple.

Continue until all standard fields have been mapped.

Mapping Best Practices

When mapping personal information such as:

• First Name
• Last Name
• Date of Birth
• Phone Number
• Email Address

remain consistent throughout the form.

For example:

✔ Prospect → First Name

✔ Prospect → Last Name

✔ Prospect → Date of Birth

Avoid mixing Prospect and Insured mappings unless the form specifically requires it.

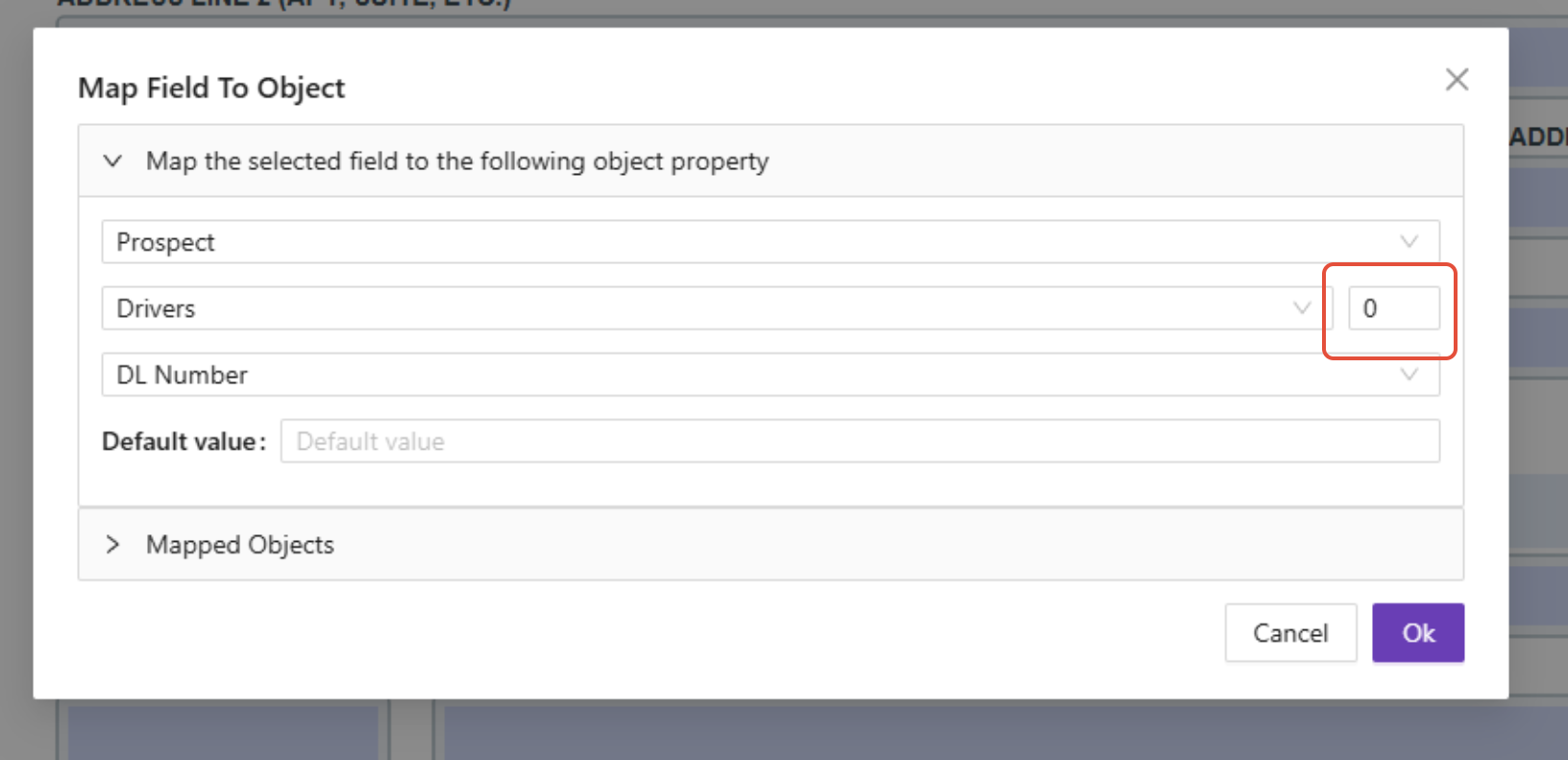

Mapping Indexed Fields (Drivers & Vehicles)

Driver and vehicle information uses indexed records.

This allows multiple drivers or vehicles to be created from a single submission.

For example:

Driver 1

Every field belonging to the same driver or vehicle must use the same index.

Example for Driver 1:

• Drivers → 0 → Name
• Drivers → 0 → Date of Birth
• Drivers → 0 → Driver License Number

If the next section is Driver 2:

• Drivers → 1 → Name
• Drivers → 1 → Date of Birth
• Drivers → 1 → Driver License Number

(Insert Screenshot)

Saving Your Mapping

After all fields have been mapped:

1. Scroll to the bottom of the page.
2. Click Update.

Your Reverse PDF Form is now ready to receive submitted data.

Tips & Best Practices

✔ Map fields from top to bottom.

✔ Verify each mapped field changes from light blue to purple.

✔ Use descriptive custom field names whenever possible.

✔ Keep Prospect and Insured mappings consistent.

✔ Verify all indexed fields use the correct driver or vehicle number.

✔ Save frequently if working on a large form.

Frequently Asked Questions

Why didn't my field map?

Ensure the PDF field itself is fillable and that you selected the correct Momentum AMS field before clicking OK.

Why is my field still blue?

Blue indicates the field has not yet been mapped.

Mapped fields will appear purple.

What does Index 0 mean?

Momentum uses zero-based indexing.

• 0 = First Driver/Vehicle
• 1 = Second Driver/Vehicle
• 2 = Third Driver/Vehicle

Can I map custom fields?

Yes.

Select Custom Fields as the data source, then choose the appropriate custom field.
